Coil Cleaning in Museums and Archives

Coil Cleaning in Museums and Archives

Air quality can severely impact and deteriorate irreplaceable paintings, documents, drawings, books and journals within a vault, storage area, library and exposition hall. Preserving these fine treasures from the ravages of mold, spores and bacteria are a priority for libraries, archives, museums and collectors. UV systems are designed to destroy airborne mold spores and their associated odors, as well as bacteria that can very well destroy treasures from the past.

Sanuvox UV IL-CoilClean systems are designed to destroy mold and other bio-contaminants on the evaporator coil, which results in spores as well as off-gassing being « blown-off » the evaporator coil and distributed through the facility.

Sanuvox in-duct UV BioWall systems effectively destroy thousands of airborne bio-contaminants, such as mold, bacteria, viruses, chemicals, VOCs and odors.

The equipment

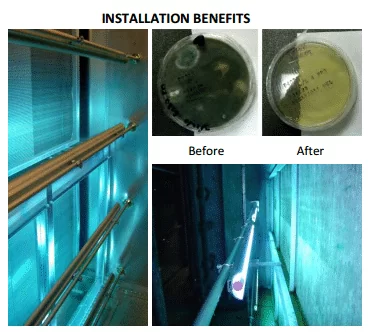

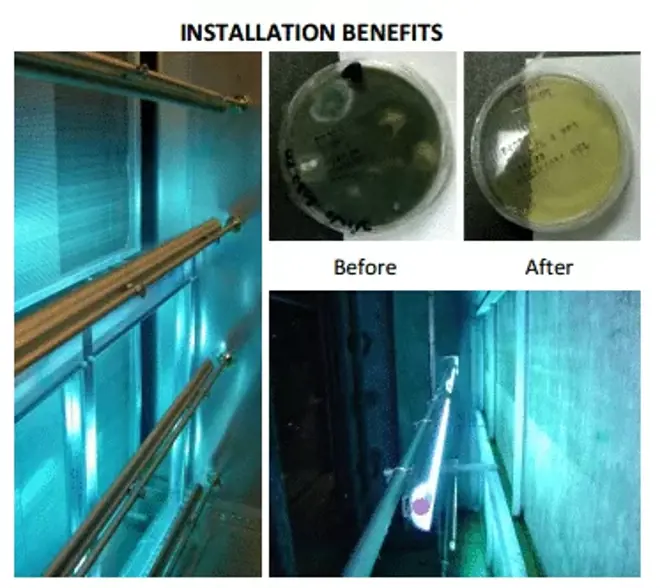

The Sanuvox IL-Coil Clean system for HVAC coils utilizes a patented technology to focus the maximum UV energy on any surface. The patented anodized aluminum parabolic reflector serves two purposes:

  1. Redirects the maximum amount of UV energy produced by the lamp onto the coil surface, requiring less or shorter lamps and fixtures.
  2. Protects the UV lamp from fouling.
Coil Cleaning in Museums and Archives

Operating the equipment

Prolonged exposure to UV radiation will keep the air conditioning coil clean and free of bio-contaminants, including viruses, fungi, bacteria and bio-film that may grow on the coil. Maintaining a coil free of microbial growth will maximize the efficiency of coil heat transfer and reduce the hours of operation of the compressors, resulting in lower energy costs.

UV-C Germicidal principle

The UV-C wavelength is well documented for its germicidal properties. The effects of ultraviolet radiation on biological contaminants have also been included in the latest ASHRAE Handbooks. Generally, this relationship is similar to the absorption curve of nucleic acid (DNA) the basis of all living organisms. The germicidal destruction rate for any specified bio-contaminant can be greater than 99.9% as the maximum UV intensity produced by the UV lamp is directed onto the coil and each application is sized according to its requirements.

Where to install

Many buildings and facilities can be installed with either the IL-CoilClean or the BioWall, like libraroes, museums, archives, record rooms, evidence rooms, private collections, or galleries.
