For facility managers and infection control specialists, the maintenance check for a UV disinfection system often begins and ends with a simple observation: if the lamp is glowing blue, it must be working. However, in the world of ultraviolet germicidal irradiation (UVGI), this visual cue is a dangerous deception.
A UV lamp that appears "on" may actually be a "an empty shell": a device that looks perfectly functional to the human eye but has lost the physical capacity to neutralize pathogens.
Failing to understand the nuances of UV degradation isn't merely a maintenance oversight; it is a critical safety risk. When a lamp’s germicidal output drops below the threshold required for inactivation, bacteria, viruses, and mold spores survive the exposure entirely undetected. To ensure true disinfection, we must look past the visible light and into the "engineering detective" work of how these lamps age at an atomic level.

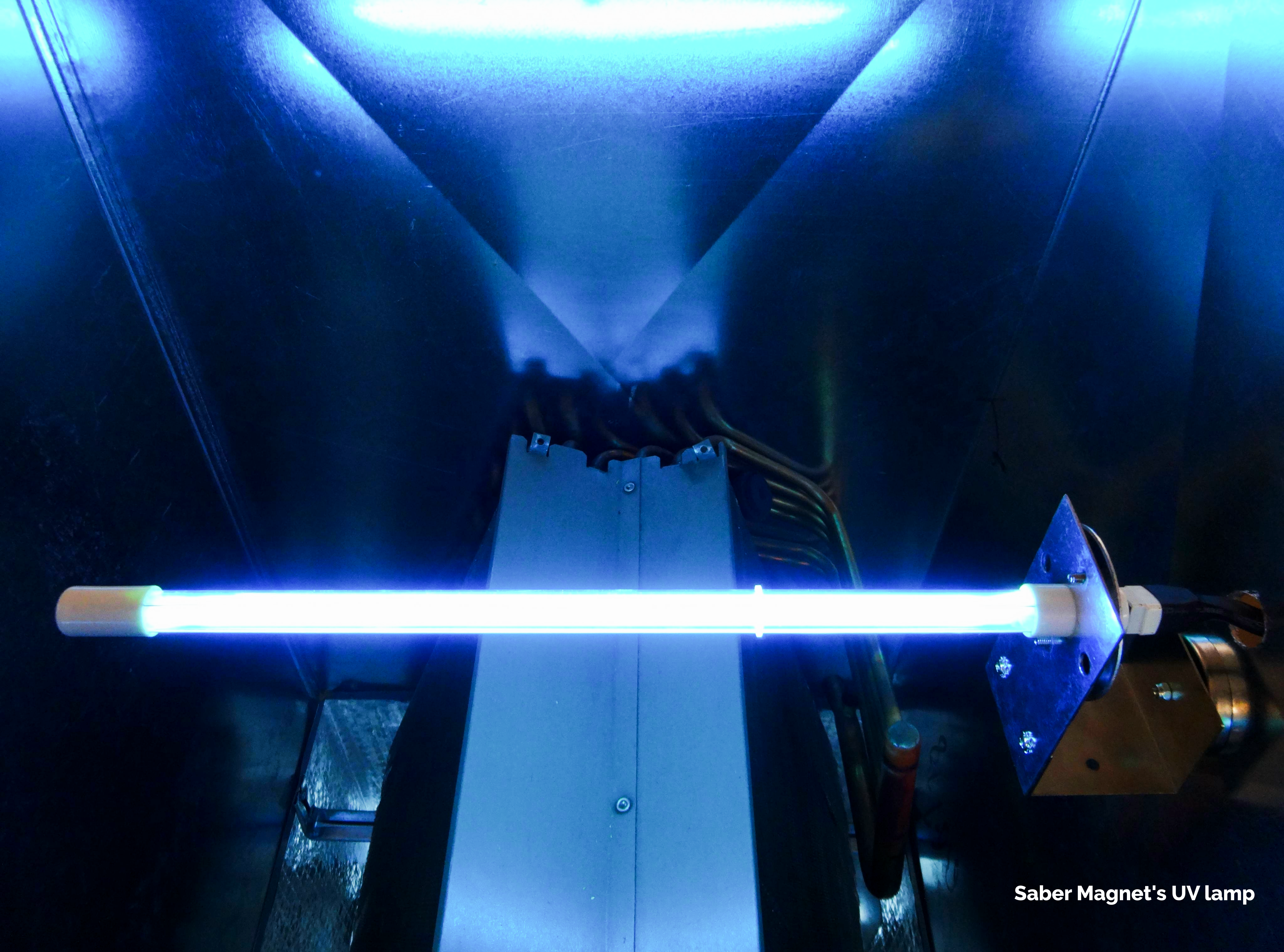

The characteristic blue-purple glow of a UV lamp is an optical byproduct, not the primary weapon. Germicidal UVC radiation occurs at 254 nanometers (nm), a wavelength that is completely invisible to the human eye. The glow we see comes from other mercury emission lines that happen to fall within the visible spectrum.
As a lamp ages, these two outputs decouple. The visible blue glow persists because it requires significantly less energy to produce and is less affected by the internal degradation of the lamp’s chemistry. Meanwhile, the invisible UVC output declines steadily as the internal environment of the quartz tube changes. This creates a false sense of security; the lamp provides the appearance of protection while the actual germicidal barrier has silently vanished.
By the time a lamp visually flickers or dies, it has likely been operating as a "an empty shell" for thousands of hours, providing light without protection.
In an attempt to conserve energy, many users cycle UV lamps on and off based on room occupancy. However, "short-cycling" is the primary driver of premature, catastrophic filament failure.
The heart of the lamp lies in its electrodes, coiled tungsten filaments coated with a specialized "emission mixture" of barium, strontium, and calcium oxides. This coating is designed to lower the "work function" of the electrode, allowing electrons to be "boiled off" the surface to sustain the mercury arc discharge. This process, known as thermionic emission, is the fundamental engine of the lamp.
Every time a lamp is switched on, it receives a high-voltage pulse to ionize the argon gas and strike the arc. During this startup, especially with "instant-start" ballasts, ionized argon and mercury ions are accelerated by the electric field and violently bombard the cathode. This "sputtering" process rips the emission coating from the filament, blasting it onto the quartz wall. While "programmed-start" ballasts mitigate this by preheating the filament to gently release electrons, frequent cycling eventually strips the filament bare. Continuous operation is significantly less stressful on the lamp’s internal chemistry than the violence of a thousand starts.
To an expert, the discoloration on a lamp is a map of its history. By analyzing specific "zones" of degradation, we can diagnose exactly why a lamp is failing.
Zone 1: Electrode Sputtering (The Base)
The heavy blackening near the filaments at the base of the lamp is the most dramatic sign of end-of-life. This is the sputtered emission coating itself, physically deposited on the inner quartz wall. In a standard AC environment, these electrodes alternate between acting as the cathode and the anode 120 times per second (at 60 Hz). This rapid alternation means both ends of the lamp are subjected to constant ion bombardment.
The Catastrophic Failure Mode
As the emission coating is depleted, the lamp’s electrical characteristics shift. Because the bare tungsten cannot sustain thermionic emission efficiently, the lamp must draw higher and higher voltage to maintain the arc. This creates a feedback loop: the voltage surge eventually becomes so great that the ballast detects the anomaly and cuts power, or the filament undergoes a sudden, total failure. This usually happens long after the lamp has passed its "useful UV life."

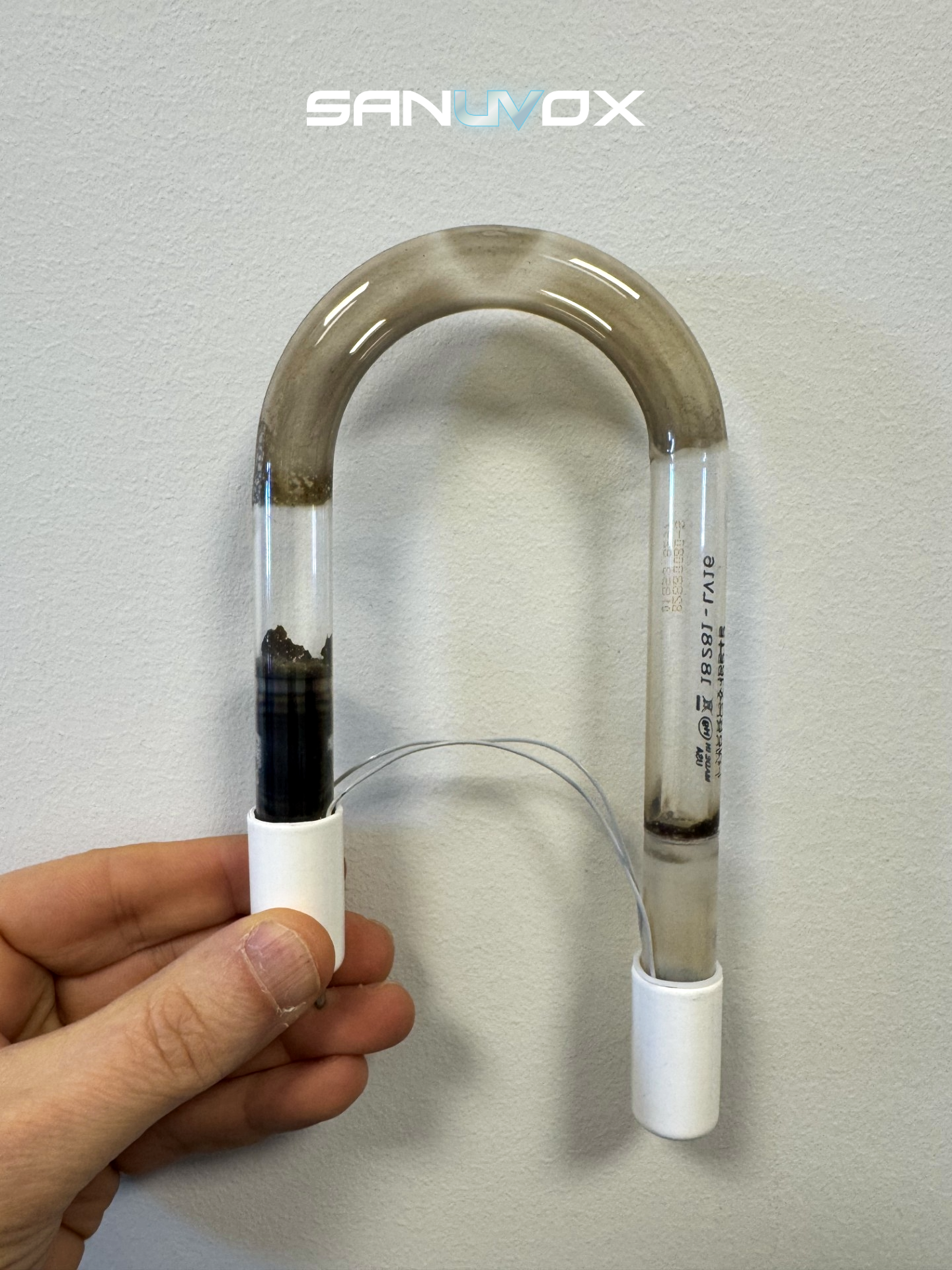

* This picture is an example of how lamp physics will manifest if left to run indefinitely.
Severe blackening (left side) results from sputtering caused by frequent short on/off cycles throughout the day. The "cleaner" appearance on the right likely stems from better filament heating on that side and/or additional heat from splicing two different quartz types together. This lamp dates back to 2018, but manufacturing has since improved by optimizing the sequence.
In dual-wavelength lamps, two types of fused quartz are spliced together, and they age in remarkably different ways.
Find more information about the UVC here: https://sanuvox.com/en/blog/uv-disinfection-a-comparative-technology-review-of-continuous-uvc-pulsed-xenon-uv/
Interestingly, the UVV section often appears "cleaner" than the UVC section. This is partly because the absence of the TiO2 internal coating changes how sputtered material adheres; without the opaque coating to interact with, the deposition appears milder. Furthermore, the "splice junction", the point where these two quartz types are fused, requires intense thermal energy during manufacturing. This extra heat at the junction can actually contribute to more effective filament operation on that end, resulting in less visible sputtering.
Zone 2: The Grey Haze
You may also notice a "grey haze" in the U-bend of the lamp. This isn't sputtering from the filaments. Instead, it is a manufacturing artifact.
The intense heat required to bend the quartz tube can damage the internal TiO2 coating if the sequence of coating and bending isn't perfectly timed, leading to a cloudy appearance that has nothing to do with the lamp's age.
Maintenance by the clock, not the eye
